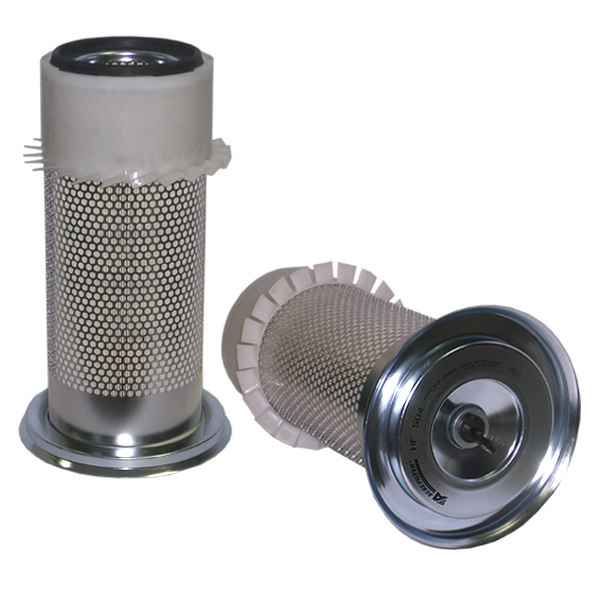

AIR FILTER PRIMARY FINNED
HF504
AIR FILTER PRIMARY FINNED
HF504
£60.99 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Outer Diameter Top End | 154 mm (6.06 inch) |
| Outer Diameter Finned | 196 mm (7.72 inch) |
| Outer Diameter Bottom Flange | 214 mm (8.43 inch) |
| Inner Diameter | 88 mm (3.46 inch) 7/16”UNFx20 |
| Inner Diameter Bottom End | 88 mm (3.46 inch) 7/16”UNFx20 |
| Length | 383 mm (15.08 inch) |
| Overall Length | 393 mm (15.47 inch) |
| Efficiency Beta 1000 | 99.9% |
| Efficiency Test Standard | ISO IATF 16949 |
| Family | Extreme Protection |
| Type | OEM Quality Air Filter |
| Style | Primary Round Finned |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Metal End Caps |
| Notes | Metal Mesh Protection |
| Notes | Safety HF232 |
| Primary Application | NEW HOLLAND 1930765 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AGCO | 3310355M91 |
| AGCO | 72281455 |
| ALCO | MD754K |
| AMERICAN PARTS | 94801 |
| AMMANN | 45358520084 |
| ARGO | 3310355M91 |
| ARMAFILT | L1543921 |
| ASAS | HF504 |
| ASAS FILTER | HF504 |
| ATLAS | 1789231 |
| ATLAS | 3216523700 |
| ATLAS | 831038 |
| ATLAS COPCO | 3216523700 |
| ATLAS COPCO | 1789231 |
| ATLAS WEYHAUSEN | 1789231 |
| ATLAS WEYHAUSEN | 831038 |
| BALDWIN | PA3669FN |
| BENATI | 1849438 |
| BEPCO | 161104 |
| BOBCAT | 3576571 |
| BOBCAT | 4313352 |
| BOMAG | 5730134 |
| BRAUD | 20015933 |
| CARQUEST | 88801 |
| CASE IH | T1950555 |
| CASE IH | 1931146 |
| CATERPILLAR | 1006845 |
| CATERPILLAR | 26510304 |
| CATERPILLAR | 26510315 |
| CHARDONNET | 7277155000 |
| CLAAS | 11301460 |
| CLARK | 3576571 |
| CLARK | 4313352 |
| CLARK | MI3576571 |
| CLEAN | MA716 |
| COOPERS | AEK2460 |
| CROSLAND | 9732K |
| DEUTZ FAHR | 242491300 |
| DEUTZ FAHR | 242491310 |
| DEUTZ FAHR | 242493104 |
| DEUTZ FAHR | 4407275 |
| DONALDSON | P771550 |
| DONALDSON | P770197 |
| DONALDSON | P770822 |
| DONALDSON | P772550 |
| DONALDSON | P774509 |
| DONALDSON | P774550 |
| DONALDSON | 776282 |
| DONALDSON | P815288 |
| DOOSAN | 93158624 |
| DYNAPAC | 212145 |
| FIAAM | FLI6620 |
| FIAT | 1789231 |
| FIAT | 1849140 |
| FIAT | 1930442 |
| FIAT | 1930765 |
| FIAT | 1931146 |
| FIAT | 79067204 |
| FIAT | 79072797 |
| FIAT | 920015933 |
| FIL | HP4625K |
| FISPA | FAC803 |
| FLEETGUARD | AF4748K |
| FORD | 85824366 |
| FRAM | CAK4817 |
| GIF FILTER | GA858 |
| GREGOIRE | 170044 |
| GREYFRIARS | 1263A |
| GT PIECES ET SERVICES | 2242931 |
| GUD | ADG1755 |
| HAVAM | HD9190 |
| HAVAM | HD9896 |
| HAWKER SIDDELEY | 36607639 |
| HENGST | E1596L |
| HIFI | SA14698K |
| HITACHI | 1930765 |
| HITACHI | 79067204 |
| HITACHI | 79072797 |
| HUERLIMANN | 242491310 |
| HUERLIMANN | 24249340A |
| INGERSOLL RAND | 93158624 |
| IVECO | 5000812330 |
| IVECO | 5010042783 |
| IVECO | 79067204 |
| IVECO | 920015933 |
| JCB | JLH0100 |
| KALMAR | 9231200222 |
| KELTEC | KC255004K |
| KNECHT | LX1670 |
| KOMATSU | 20301K1130 |
| KRALINATOR | LA1676 |
| KRALINATOR | LA1854F |
| LAMBORGHINI | 242491310 |
| LAND ROVER | ACU7630 |
| LAND ROVER | BBU4784 |
| LAND ROVER | NTC3535 |
| LANDINI | 3310355M91 |
| LAVERDA | 85824366 |
| LISTER PETTER | 36607639 |
| LOESING | 20972 |
| LOESING | 21783 |
| LOMBARDINI | 2175074 |
| LUBER FINER | LAF8583 |
| MAHLE | LX1670 |
| MANN HUMMEL | C16340 |
| MASSEY FERGUSON | 3310355M91 |
| MASSEY FERGUSON | 1031690 |
| MASSEY FERGUSON | 26510304 |
| MASSEY FERGUSON | 3909235M1 |
| MCCORMICK | T1950555 |
| MECA FILTER | FA3398 |
| METSO | 212145 |
| MISFAT | R078 |
| MULTI PART | BBU4784 |
| NAPA | 6801 |
| NEW HOLLAND | 1930765 |
| NEW HOLLAND | 1849140 |
| NEW HOLLAND | 79067204 |
| NEW HOLLAND | 79072797 |
| NEW HOLLAND | 920015933 |
| NEW HOLLAND | T1950555 |
| NEW HOLLAND | 85824366 |
| NOITECH SRL | NA002260 |
| PACCAR | Y05764008 |
| PACCAR | Y05765308 |
| PALLMAN | PFA77149 |
| PALLMAN FILTER | PFA77149 |
| PANHARD | 431455 |
| PARKER HANNIFIN | PA3669FN |
| PBR | AI339308 |
| PERKINS | 1006845 |
| PERKINS | 26510304 |
| PERKINS | 26510315 |
| POCLAIN | TI950555 |
| RENAULT VI | 5000812330 |
| RENAULT VI | 5010042783 |
| ROVER | ACU7630 |
| ROVER | BBU4784 |
| ROVER | NTC3535 |
| SAKURA | AS7988 |
| SAKURA | A8564 |
| SAME | 242491300 |
| SAME | 242491310 |
| SAME | 242493104 |
| SAME | 941080 |
| SAVARA | 923692 |
| SDMO | 330560194 |
| SDMO | 330570020 |
| SEDEMS | S010042783 |
| SF FILTER | SL5632 |
| SLANZI | 2175074 |
| SOFILTRA | 12680900 |
| SOFIMA | S1850A |
| SOTRAS | SA6022 |
| SPAREX | S76788 |
| SULLAIR | 528240 |
| SULLAIR | 68528240 |
| TECHNOCAR | A581 |
| TECNOCAR | A581 |
| TEREX | T1950555 |
| TIM | 1006845 |
| TRP | 1534885 |
| UFI | 2707800 |
| VAPORMATIC | VPD7135 |
| VENIERI | 2961002 |
| VM MOTORI | 41132008A |
| VOLVO | 3576571 |
| WALGAHN MOTORENTECHN | 811560 |
| WALGAHN MOTORENTECHN | 811601 |
| WIX | 46801 |
| WIX | 46613E |
| WIX | 46683 |
| WOODGATE | WGA467K |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| AMMANN ASC100 | COMPACTOR | ASC SERIES | CUMMINS 4BTA3.9 | |
| AMMANN ASC70 | COMPACTOR | ASC SERIES | CUMMINS B4.5 | |
| AMMANN ASC90D | COMPACTOR | ASC SERIES | CUMMINS B4.5 | |
| CASE IH 5110 | TRACTOR | CUMMINS 4BT3.9 | ||
| CASE IH 5120 | TRACTOR | MAXXUM | CUMMINS 4BT3.9 | |
| CASE IH 5130 | TRACTOR | MAXXUM | CUMMINS 6590 | |
| CASE IH 5140 | TRACTOR | MAXXUM | CUMMINS 6BT5.9 | |
| CASE IH W14B | TRACTOR | CUMMINS 6B5.9 | ||
| DEUTZ FAHR 70 | TRACTOR | DEUTZ F4L913 | ||
| DEUTZ FAHR AGROLUX 90 | TRACTOR | DEUTZ F4L913T | ||
| DEUTZ FAHR AGROPLUS 87 | TRACTOR | DEUTZ 1000.4 WT | ||
| DEUTZ FAHR AGROTRON 80 | TRACTOR | DEUTZ F4L913 | ||
| HUERLIMANN 6115 | TRACTOR | SAME 1000.6W | ||
| HUERLIMANN 6115T | TRACTOR | SAME 1000.6W | ||
| HUERLIMANN 656DT | TRACTOR | PERKINS 1000.3W1 | ||
| HUERLIMANN 656XAT | TRACTOR | PERKINS 1000.3W1 | ||
| HUERLIMANN H307XE | TRACTOR | PERKINS 1000.3TAT | ||
| HUERLIMANN H372 | TRACTOR | PERKINS 1000.4W4 | ||
| HUERLIMANN H4105DT | TRACTOR | PERKINS 1000.4W4 | ||
| HUERLIMANN H488 | TRACTOR | PERKINS 1000.4W4 | ||
| HUERLIMANN H496 | TRACTOR | H 400 SERIES | PERKINS 1000.4W4 | |
| HUERLIMANN H5116 | TRACTOR | H 5000 SERIES | PERKINS 1000.4W4 | |
| HUERLIMANN H6136 | TRACTOR | H 6000 SERIES | PERKINS 1000.4W4 | |
| HUERLIMANN XA607DT | TRACTOR | PERKINS 1000.4W4 | ||
| HUERLIMANN XA65 | TRACTOR | PERKINS 1000.4A | ||
| HUERLIMANN XA656 | TRACTOR | XA SERIES | PERKINS 1000.3W1 | |
| HUERLIMANN XA658 | TRACTOR | PERKINS 1000.4AT | ||
| HUERLIMANN XN706 | TRACTOR | XN SERIES | PERKINS 1000.3W | |
| HUERLIMANN XN707 | TRACTOR | PERKINS 1000.4W | ||
| HUERLIMANN XN708 | TRACTOR | PERKINS 1000.4W | ||
| HUERLIMANN XS70 | TRACTOR | PERKINS 1000.4WT3 | ||
| HUERLIMANN XT105 | TRACTOR | XT SERIES | PERKINS 1000.4WT3 | |
| HUERLIMANN XT908 | TRACTOR | XT SERIES | PERKINS 1000.4WT3 | |
| HUERLIMANN XT908DT | TRACTOR | PERKINS 1000.4WT3 | ||
| HUERLIMANN XT909DT | TRACTOR | PERKINS 1000.4WT2 | ||
| HUERLIMANN XT910.4 | TRACTOR | XT SERIES | PERKINS 1000.4WT1 | |
| HUERLIMANN XT910.4DT | TRACTOR | PERKINS 1000.4WT1 | ||
| HUERLIMANN XT910.6 | TRACTOR | XT SERIES | PERKINS 1000.6W1 | |
| HUERLIMANN XT910.6 DT | TRACTOR | PERKINS 1000.6W1 | ||
| HUERLIMANN XT95 | TRACTOR | PERKINS 1000.4WT8 | ||
| KOMATSU PC1205K | EXCAVATOR TRACKED | PERKINS 1004.4T | ||
| KOMATSU PC1505K | EXCAVATOR TRACKED | PERKINS 1004.4T | ||
| LAMBORGHINI 660 | TRACTOR | AGILE | PERKINS 1000.3W | |
| LAMBORGHINI AGILE 770 | TRACTOR | PERKINS 1000.4W | ||
| LAMBORGHINI AGILE 770S | TRACTOR | PERKINS 1000.3T | ||
| LAMBORGHINI AGILE 880 | TRACTOR | PERKINS 1000.4W | ||
| LAMBORGHINI AGILE 880S | TRACTOR | PERKINS 1000.4W | ||
| LAMBORGHINI AGILE 989 | TRACTOR | PERKINS 1000.4WT | ||
| LAMBORGHINI AGILE 990S | TRACTOR | PERKINS 1000.4WT | ||
| LAMBORGHINI FORMULA 115DT | TRACTOR | SAME 1000.6W | ||
| LAMBORGHINI FORMULA 135DT | TRACTOR | SAME 1000.6WT | ||
| LAMBORGHINI 77480DT | TRACTOR | GRAND PRIX | PERKINS 1000.4W | |
| LAMBORGHINI 87490T | TRACTOR | GRAND PRIX | PERKINS 1000.4WT | |
| LAMBORGHINI PLUS 990FDT | TRACTOR | PERKINS 1000.4WT1 | ||
| LAMBORGHINI 1060DTA | TRACTOR | PREMIUM | PERKINS 1000.6W1 | |
| LAMBORGHINI PREMIUM 950DTA | TRACTOR | PREMIUM | PERKINS 1000.4WT2 | |
| LAMBORGHINI RACING 150DT | TRACTOR | SAME 1000.6WTI1 | ||
| LAMBORGHINI RACING 165DT | TRACTOR | PERKINS 1000.6WTI | ||
| LAMBORGHINI RACING 190DT | TRACTOR | SAME 1000.6WTIR | ||
| LANDINI 115 LEGEND | TRACTOR | LEGEND I | PERKINS 1006.6 HR3 | |
| MASSEY FERGUSON MF3315 | TRACTOR | MF 3300 SERIES | PERKINS 903.27 | |
| MASSEY FERGUSON MF3325 | TRACTOR | MF 3300 SERIES | PERKINS 903.27T | |
| MASSEY FERGUSON MF3330 | TRACTOR | MF 3300 SERIES | PERKINS 1004.4 | |
| MASSEY FERGUSON MF3340 | TRACTOR | MF 3300 SERIES | PERKINS 1004.42 | |
| MASSEY FERGUSON MF3350 | TRACTOR | MF 3300 SERIES | PERKINS 1004.40T | |
| MASSEY FERGUSON MF3355 | TRACTOR | MF 3300 SERIES | PERKINS 1004.40T | |
| MASSEY FERGUSON MF3425 | TRACTOR | MF 3400 SERIES | PERKINS 103C33T | |
| MASSEY FERGUSON MF3435 | TRACTOR | MF 3400 SERIES | PERKINS 1104C44 | |
| MASSEY FERGUSON MF3445 | TRACTOR | MF 3400 SERIES | PERKINS 1104C44T | |
| MASSEY FERGUSON MF3455 | TRACTOR | MF 3400 SERIES | PERKINS 1104C44T | |
| NEW HOLLAND NH75TLB | BACKHOE LOADER | SAME 1000.4AT1 | ||
| SAME 100.4 DT | TRACTOR | SAME 1000.4AT1 | ||
| SAME 100.6 DT | TRACTOR | SAME 1000.6A1 | ||
| SAME 80 C | TRACTOR | SAME 1000.4A4 | ||
| SAME 80 DT | TRACTOR | SAME 1000.4A4 | ||
| SAME 90 DT | TRACTOR | SAME 1000.4AT2 | ||
| SAME 95 | TRACTOR | SAME 1000.4A | ||
| SAME DORADO 85 | TRACTOR | SAME 1000.4A | ||
| SAME EXPLORER 70 C | TRACTOR | SAME 1000.4A | ||
| SAME EXPLORER 90 | TRACTOR | SAME 1000.4A | ||
| SAME EXPLORER 90 C | TRACTOR | SAME 1000.4A | ||
| SAME EXPLORER II 90 SP | TRACTOR | SAME 1000.4A | ||
| SAME JAGUAR 100 | TRACTOR | SAME 105.4PT | ||
| SAME LEOPARD 90 | TRACTOR | SAME 105.4PT | ||
| SAME ROW CROP 90 | TRACTOR | SAME 1000.4A4 | ||
| SAME SILVER 80 DTA | TRACTOR | SAME 1000.4A4 |
