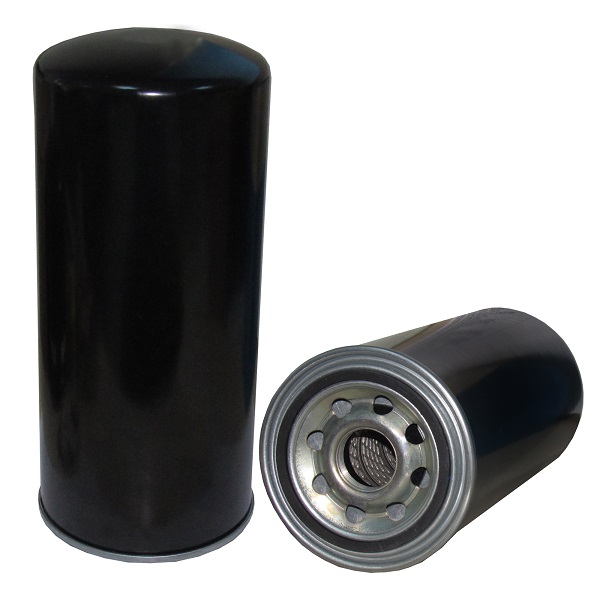

HYDRAULIC FILTER SPIN ON
SP1125
HYDRAULIC FILTER SPIN ON
SP1125
£90.00 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Thread Size | 1 1/2 x 16 UN |
| Outer Diameter | 140 mm (5.51 inch) |
| Gasket OD | 110 mm (4.33 inch) |
| Gasket ID | 100 mm (3.94 inch) |
| Length | 308 mm (12.13 inch) |
| Length | 308 mm (12.13 inch) |
| Anti Drain Back Valve | No |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.7 bar 25 psi |
| Bypass Valve Setting HR | 2.5 bar 39 psi |
| Collapse Burst | 6.9 bar 100 psi |
| Efficiency 99% Beta 100 | 18 micron |
| Efficiency 99% Beta 100 | 40 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Type | OEM Quality Hydraulic Filter |
| Style | Hydraulic Spin On |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Gasket Seal Included |
| Notes | Square Seal is Attached |
| Notes | |
| Primary Application | ATLAS COPCO 1621875099 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| AC DELCO | PF879 |
| AC DELCO | PF879L |
| AHLMANN | 4174061A |
| ALUP COMPRESSOR | 17213145 |
| AP FILTER | AP77501 |
| AP FILTER | AP77501A |
| AP FILTER | AP97500 |
| AP LOCKHEED | LK97500 |
| ASAS | SP1125 |
| ASAS FILTER | SP1125 |
| ATLAS COPCO | 1621875099 |
| ATLAS COPCO | 3222309420 |
| ATLAS COPCO | 3222326230 |
| ATLAS COPCO | 3222343172 |
| ATMOS | 627961314500 |
| ATMOS | 627963062226 |
| BALDWIN | B239 |
| BAUDOUIN | 15049130A |
| BAUER MASCHINEN | 237748 |
| BLITZ ROTARY | 758107 |
| BOMAG | 5821215 |
| BOSCH REXROTH | 45140321 |
| BOSCH REXROTH | 451403210 |
| BOSCH REXROTH | P3210 |
| BUCYRUS ERIE | 1005871 |
| BUCYRUS ERIE | 1470779 |
| BUCYRUS ERIE | 45495 |
| BUCYRUS ERIE | Y0045495 |
| CASE IH | 12335 |
| CATERPILLAR | 1HA609 |
| CHELYABINSK COMPRESSOR | FM302180 |
| CHELYABINSK COMPRESSOR | M302180 |
| CLAAS | 363203 |
| CLAAS | 3632030 |
| COMPAIR | 432996 |
| COMPAIR | 43299600 |
| COMPAIR | 98870100 |
| COOPERS | AZL128 |
| DALGAKIRAN | 1311123800 |
| DALGAKIRAN | 131123800 |
| DEMAG | 4425274 |
| DEMAG | 432996 |
| DEMAG | 43299600 |
| DEMAG | 98870100 |
| DEUTZ | 1183600 |
| DIGOEMA FILTER | DGMH13145 |
| DONALDSON | P502527 |
| ECOAIR | BN16013 |
| EDMAC COMPRESSOR | 3004003777 |
| EMD | 40035123 |
| FARR | 114270001 |
| FARR | 314271001 |
| FAUN FRISCH | G292100471110 |
| FENDT | G292100471110 |
| FIAAM | FT4940 |
| FIAC | 7120400000 |
| FIL FILTER | ZP82 |
| FILCOM | F02132981 |
| FILPRO CORPORATION | FP101463 |
| FILTRATION LTD | FTH7537 |
| FLEETGUARD | HF35076 |
| FLEETRITE | LFR8691 |
| FLUITEK | FLK1800178 |
| FNI | 2020479 |
| FRAD | 456531110 |
| FU SHENG | 7118146930 |
| FU SHENG | 91107032 |
| GENERAL MOTORS | 6439658 |
| GIF FILTER | GL946 |
| GONHER | GP52 |
| GREYFRIARS | 9058S |
| GROVE | 9414100363 |
| HANOMAG HENSCHEL | 3095171 |
| HANSHIN | 440260 |
| HANSHIN | HS440260 |
| HASTINGS | FP359 |
| HASTINGS | LF359 |
| HASTINGS | P359 |
| HENGST | H300WD01 |
| HIFI FILTER | SH56405 |
| HIFI FILTER | SO10017 |
| HIFI FILTER | SO3374 |
| INGERSOLL RAND | 35362235 |
| INGERSOLL RAND | BN16013 |
| IRMER ELZE | 650022 |
| IVECO | 4804381 |
| JOHN DEERE | AT105663 |
| JOHN DEERE | AZ36942 |
| JOY | 52763112 |
| KRALINATOR | L190 |
| KS KOLBENSCHMIDT | 50013622 |
| KS KOLBENSCHMIDT | 622OS |
| LOSENHAUSEN | 499144274 |
| MACO MEUDON | 528081 |
| MAN | 51055040066 |
| MAN | 51055040067 |
| MANN HUMMEL | WD13145 |
| MOTORCRAFT | FL326 |
| MOTORCRAFT | FL326FP |
| NAPA GOLD | 1792 |
| NATIONAL STOCK NUMBER | 7KP5402BG651 |
| NATO NSN | 7KP5402BG651 |
| NATO NSN | 4330015168051 |
| NATO NSN | 2940001259544 |
| NAWOOTEC | 3303127120 |
| NOITECH SRL | NO104880 |
| ONERGYS | 30000760 |
| ONERGYS | 30002193 |
| OSHKOSH | 1CF83061338 |
| OSHKOSH | 1HA609 |
| PALLMAN | PFH50252 |
| PALLMAN FILTER | PFH50252 |
| PARKER HANNIFIN | PFL5673 |
| PARKER HANNIFIN | PER69 |
| PARKER HANNIFIN | PFL5667 |
| PBR | BC1085 |
| PUROLATOR | L50070 |
| PUROLATOR | L60069 |
| PUROLATOR | PC230 |
| PUROLATOR | PC230MIC10 |
| PUROLATOR | PER69 |
| PUROLATOR | PER70 |
| RENAULT TRUCKS | 5021188589 |
| SAKURA | HC5502 |
| SCHAEFF | 5559652510 |
| SDMO | 330560279 |
| SDMO | 330560757 |
| SENNEBOGEN | 85693 |
| SF FILTER | SPH21012 |
| SOFIMA | S3412R |
| SOGEFI PRO | FT4940 |
| STENHOJ | 213126 |
| SULLAIR | HF35076 |
| SULLAIR | 5081916 |
| SULLAIR | 68500953 |
| SULLAIR | 953 |
| SULLIVAN | 520018 |
| SURE FILTER | SFH3145 |
| TEHO FILTER | OK166 |
| TONGCHENG | C740175 |
| TRP DAF | 1534667 |
| UFI FILTER | 8600700 |
| UNICO | HI13302 |
| VAPORMATIC | VPD5141 |
| WEGA | WOH300 |
| WIX FILTER | 51792XD |
| WOODGATE | WGH6803 |
| WOODGATE | WGL691 |
| WOODGATE | WGL691R |
| WOODGATE | WGL9137 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| AHLMANN AS12 | LOADER WHEELED | AS SERIES | DEUTZ BF6L913 | |
| AHLMANN AS12D | LOADER WHEELED | AS SERIES | DEUTZ BF6L913 | |
| AHLMANN AS12E | LOADER WHEELED | AS SERIES | DEUTZ BF6L913 | |
| DEMAG H 121 | EXCAVATOR TRACKED | CATERPILLAR 3412 DITA | ||
| DEMAG H 71 | EXCAVATOR TRACKED | CATERPILLAR 3406 | ||
| DEMAG H 85 | EXCAVATOR TRACKED | CATERPILLAR 3408 DITA | ||
| SULLAIR F130E | COMPRESSOR | SULLAIR F130E |
