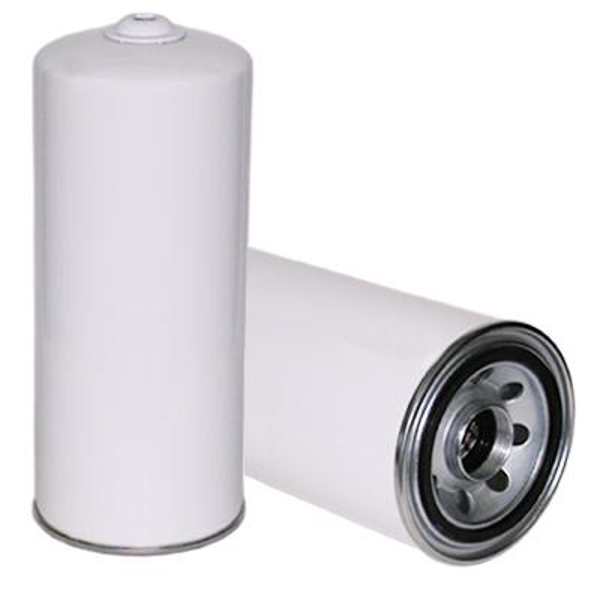

OIL FILTER SPIN ON FULL FLOW
SP1546
OIL FILTER SPIN ON FULL FLOW
SP1546
£55.98 exc VAT
In stock
In stock
Order By 2pm for UK Free Next Day Delivery
Orders under £250 Standard Delivery £25 +VAT
Orders over £250 Free Delivery
| Product Specification | |
| Thread Size | M 42 x 2 |
| Outer Diameter | 140 mm (5.51 inch) |
| Gasket OD | 110 mm (4.33 inch) |
| Gasket ID | 100 mm (3.94 inch) |
| Length | 220 mm (8.66 inch) |
| Overall Length | 225 mm (8.86 inch) |
| Efficiency 99% Beta 100 | 20 micron |
| Efficiency Test Standard | ISO IATF 16949 |
| Anti Drain Back Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.1 bar 112 psi |
| Bypass Valve Setting HR | 2.5 bar 130 psi |
| Type | OEM Quality Oil Filter |
| Style | Spin On Full Flow |
| Media Type | Cellulose Pleated |
| Notes | Bottom End Closed |
| Notes | Gasket Seal Included |
| Notes | Square Seal is Attached |
| Notes | |
| Primary Application | DAF 1345332 |
OEM Cross Reference
| Manufacturer Name | Manufacturer Part No |
| ASAS | SP1546 |
| ASAS FILTER | SP1546 |
| BALDWIN | B7161 |
| CARQUEST | 94020 |
| COOPERS | LSF5173 |
| CROSLAND | 2218 |
| DAF | 1331057 |
| DAF | 1345332 |
| DIESEL TECHNIC | 545092 |
| FEBI BILSTEIN | 35374 |
| FIAAM | FT5592 |
| FILTRON | OP6265 |
| FLEETGUARD | LF3782 |
| FLEETGUARD | LF3843 |
| FLEETRITE | LFR83782 |
| FLEETRITE | LFR83843 |
| GRAINGER | 3XUE4 |
| HENGST | H300W06 |
| HIFI | SO11035 |
| MAHLE | OC455 |
| MANN HUMMEL | W13110 |
| PALLMAN | PFO55546 |
| PALLMAN FILTER | PFO55546 |
| PARKER HANNIFIN | B7161 |
| RENAULT TRUCKS | 5021192725 |
| ROVER LEYLAND | 1331057 |
| ROVER LEYLAND | 1345332 |
| ROVER LEYLAND | LAL1302 |
| SAKURA | C7960 |
| SF FILTER | SP4732 |
| SOGEFI PRO | FT5592 |
| SURE FILTER | SFO5332 |
| TECNOCAR | R107 |
| WIX | WL10020 |
| WIX | SL10020 |
| WOODGATE | WGL3843 |
Machinery & Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine |
| DAF 75CF | TRUCK | PFM 9.2L | ||
| DAF 75CF | TRUCK | PF100M SERIES | ||
| DAF 75CF | ENGINE | PFM 9.2L | ||
| DAF 75CF | TRUCK | PEC 9.2L | ||
| DAF 75CF | ENGINE | PEC 9.2L | ||
| DAF 75CF | TRUCK | PF100M SERIES | ||
| DAF 75CF | TRUCK | PF100M SERIES | ||
| DAF 75CF | ENGINE | PF100M SERIES | ||
| DAF 75.320 | TRUCK | WS235 | ||
| DAF 75CF | ENGINE | PF200M SERIES |
